Agricultural ball bearing units for agriculture applications are available for each application and machine design, making it possible to build more value into the machine design, reduce warranty costs, reduce the number of suppliers and stay ahead of the competition.

W208PP10 Disc Harrow Round Bore Bearing,This heavy duty disc harrow bearings are made with tripple lip seals to protect from corrosive environments. This seal is a one piece shroud cover with three molded contact seals.

Disc Harrow Round Bore Bearing,This heavy duty disc harrow bearings are made with tripple lip seals to protect from corrosive environments. This seal is a one piece shroud cover with three molded contact seals.

Round Bore Agricultural Disc Bearings feature a flanged disc design that combines heavy-duty, high-performance disc bearing principles with rugged, corrosion-resistant housing for a bolt-in-place unit. They are ideal for severe tillage applications, and other heavily contaminated conditions. Misalignment tolerant. Honed raceways help provide smooth operation and long service life.

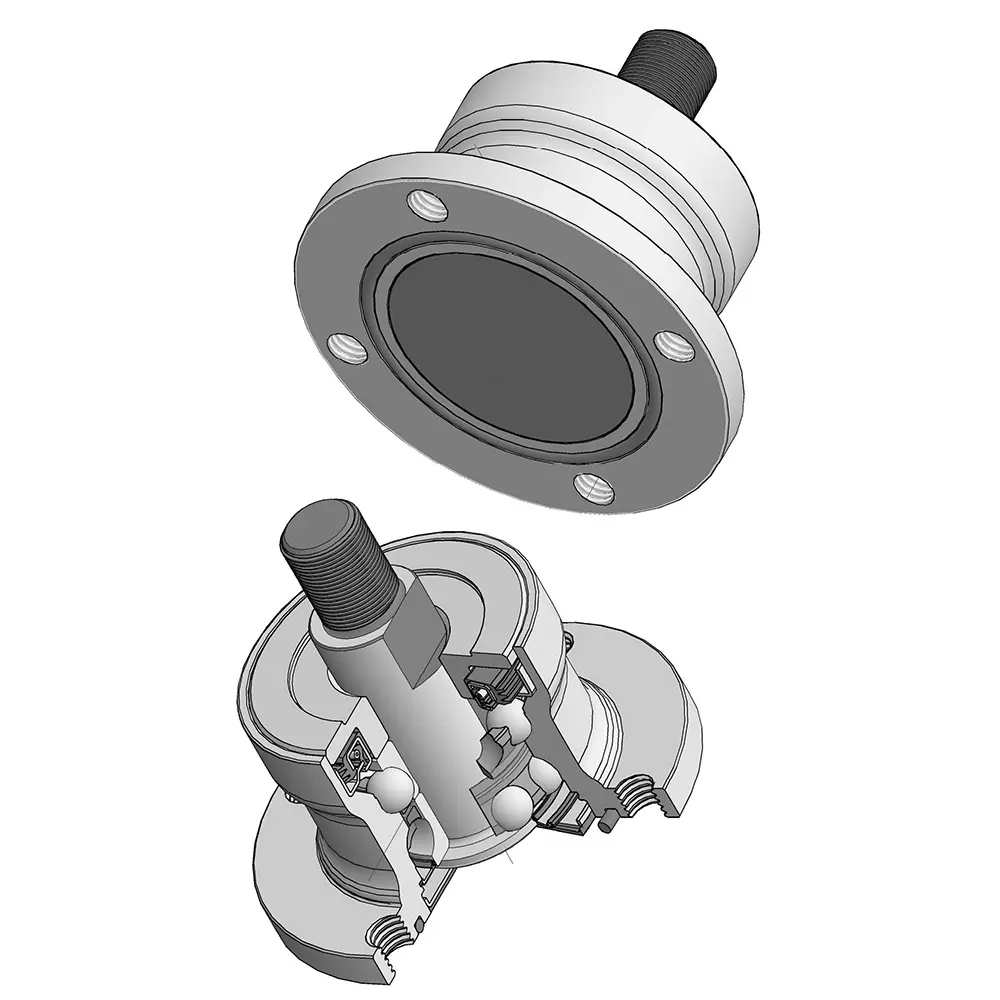

The BAA series Agricultural hub is a fully integrated hub bearing system, greased and sealed for the life of the unit. These hub units have a flanged outer ring that is pre-drilled and tapped to accommodate a disc. The stationary inner ring is fitted with a threaded stub shaft for easy mounting onto virtually any implement arm.

Farm machinery equipment and agricultural bearings are often subjected to harsh weather conditions and season operations. These are just some of the factors that place them under more difficult conditions than many other applications. There are many designs for Agricultural bearing ,such as disc harrow bearings, with both round, square and hexagonal bores many with triple seals. Typical applications include Combine harvesters, balers, seeder, tillage and lawn and garden machinery.

Agricultural Bearings are exposed to shock and high moment loads due to angle of pull. They typically need to be replaced as a result of excessive internal wear due to contamination. High sealing technology is crucial.Tillage Trunnion Unit (TTU) use six lips

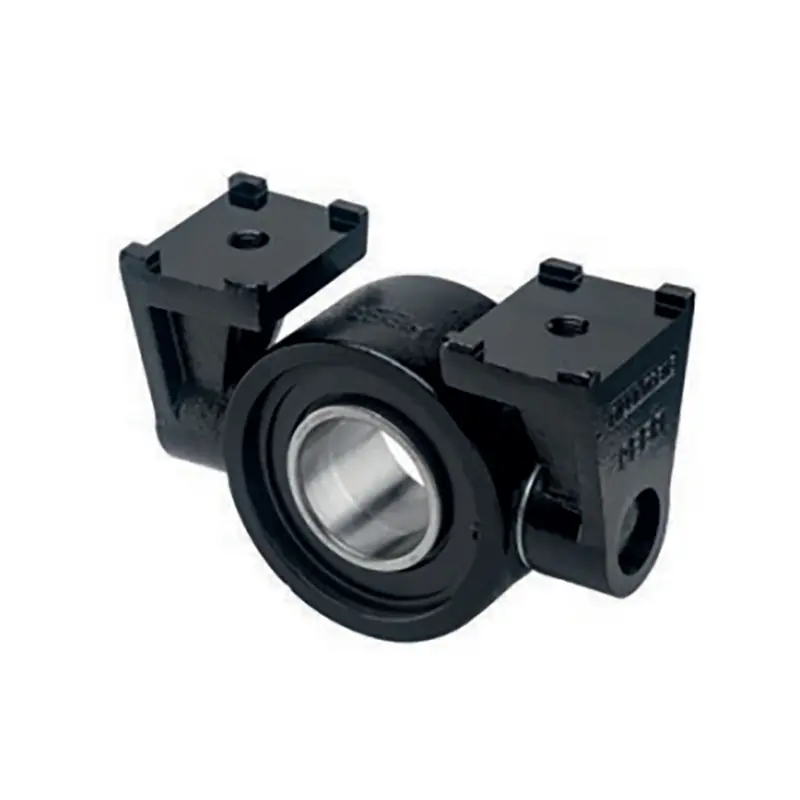

Tillage Trunnion Unit (TTU) : One of the most commonly used gang disc bearing arrangements is the trunnion housing.

LIGHT 200 SERIES Agricultural bearing R-SEAL TYPE, Consists of deep groove, Conrad-type bearings.Incorporates a flare-out, contact R-Seal. Synthetic rubber impregnated washer is enclosed between two metal shields, providing excellent protection against contaminants. Because of the heavy contact seal, this series is normally employed in moderate-speed service.

The most prominent feature of this series agricultrual bearings is a hex bore,based on deep groove ball bearing structure. Used in applications where collars, set screws, or any other locking devices are not required. This series incorporates a close fitting metal shield backed by a molded rubber seal. Also available relubricable-prefix “G”.

Square Bore Disc Harrow Bearings: Designed primarily for use in agricultural applications these ruggedly constructed ball bearings have a parallel outer raceway and a square bore, the inner race extends wider than the outer raceway.

Disc Harrow Round Bore Bearing,This heavy duty disc harrow bearings are made with tripple lip seals to protect from corrosive environments. This seal is a one piece shroud cover with three molded contact seals.

Round Bore Agricultural Disc Bearings feature a flanged disc design that combines heavy-duty, high-performance disc bearing principles with rugged, corrosion-resistant housing for a bolt-in-place unit. They are ideal for severe tillage applications, and other heavily contaminated conditions. Misalignment tolerant. Honed raceways help provide smooth operation and long service life.
