W208PPB7 Round Bore Agricultural Bearing

Round Bore Agricultural Bearings

W208PPB7 Round Bore Agricultural Bearing

Disc Harrow Round Bore Bearing,This heavy duty disc harrow bearings are made with tripple lip seals to protect from corrosive environments. This seal is a one piece shroud cover with three molded contact seals.

Round Bore Agricultural Disc Bearings feature a flanged disc design that combines heavy-duty, high-performance disc bearing principles with rugged, corrosion-resistant housing for a bolt-in-place unit. They are ideal for severe tillage applications, and other heavily contaminated conditions. Misalignment tolerant. Honed raceways help provide smooth operation and long service life.

    detail Specifications

    W208PPB7 Round Bore Agricultural bearing detail Specifications:

    Material: 52100 Chrome Steel

    Construction: Single Row

    Seal: contact seal

    Seal Material: Rubber

    Weight: 0.64 kg

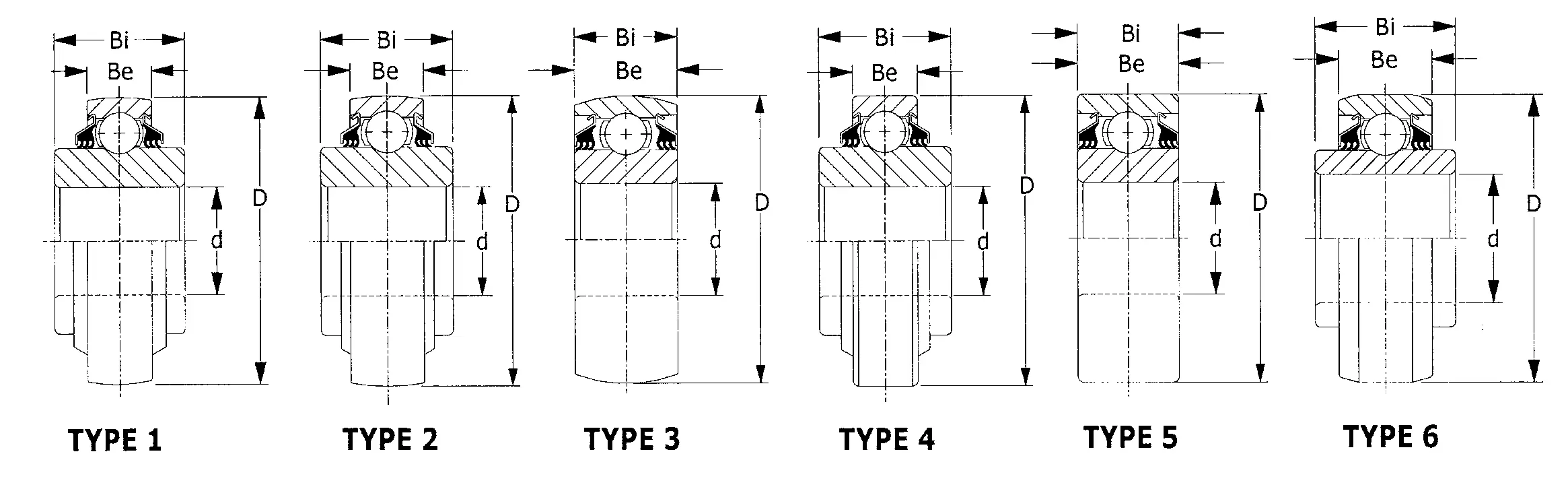

    Product type: Type 2

    W208PPB7 Round Bore Agricultural Bearing

    Main Dimensions

    Inner Diameter (d): 30.175 mm

    Outer Diameter (D): 80 mm

    Be: 18 mm

    Width (Bi): 30.175 mm

    Static load ratings: 7340 N

    Dynamic load ratings: 3650 N
